Description

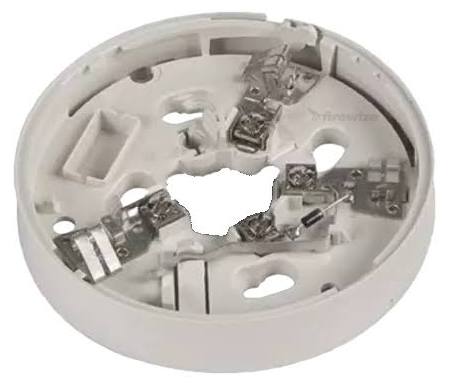

The B501AUS-W is a professional plug-in addressable detector base designed for intelligent fire systems. It accepts compatible analogue-addressable point detectors and makes wiring and maintenance straightforward. Built for Australian/NZ installation standards, the white finish integrates seamlessly with modern interiors.
Simply mount the base to standard 4″/102 mm electrical boxes, connect commissioning wiring via screw terminals for loop (+), loop (–) and remote annunciator, then plug in the detector head. Ideal for commercial, institutional and industrial applications where reliable addressable detection is required.
💡 Key Features
-
Plug-in addressable detector base with screw-terminal wiring for loop and remote indicator.
-
Bright White finish (“-W” suffix) for clean aesthetic integration.
-
Low standby current (150 µA typical) and broad voltage compatibility (15-32 V DC) for modern loops.
-
Compatible with standard 4-inch (102 mm) mounting centers and multiple box types (50 mm, 60 mm, 70 mm centers).
-
Optional tamper-resist tab to secure the detector head from removal without tool.
