Description

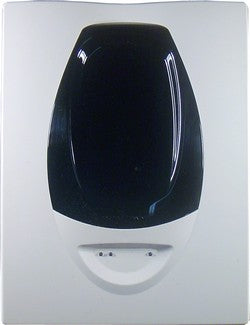

Protect large, open-space environments with the BEAM1224 beam smoke detector — engineered for applications where standard spot-type detectors are impractical due to height, airflow, or space layout.
This single-ended reflected design integrates both transmitter and receiver in one housing, with a reflector unit at the opposing end. When smoke enters the optical path between the device and reflector, a reduction in signal triggers the alarm.
Designed for demanding commercial/industrial settings such as warehouses, atriums, gymnasiums, cold-stores, manufacturing areas and large open retail spaces, the BEAM1224 delivers both broad coverage and straightforward maintenance.
💡 Key Features
-
Single-ended reflected beam design simplifies installation (only one active head + reflector).
-
Wide detection range — configured for up to ~70 m (≈230 ft) standard, and extended range up to ~100 m (≈328 ft) with optional long-range kit.
-
Six sensitivity levels (four fixed + two “Acclimate” modes) for adaptability to varying environments.
-
Digital readout and alignment display for precise installation and setup — no special tools required.
-
Automatic gain control compensates for dust or gradual optical attenuation to reduce false alarms and maintenance burden.
-
Rugged environmental specification — suitable for use in temperatures down to –30 °C and up to +55 °C (–22 °F to +131 °F) depending on regional spec sheet.
-
Paintable trim ring and aesthetic adaptability for commercial interiors
